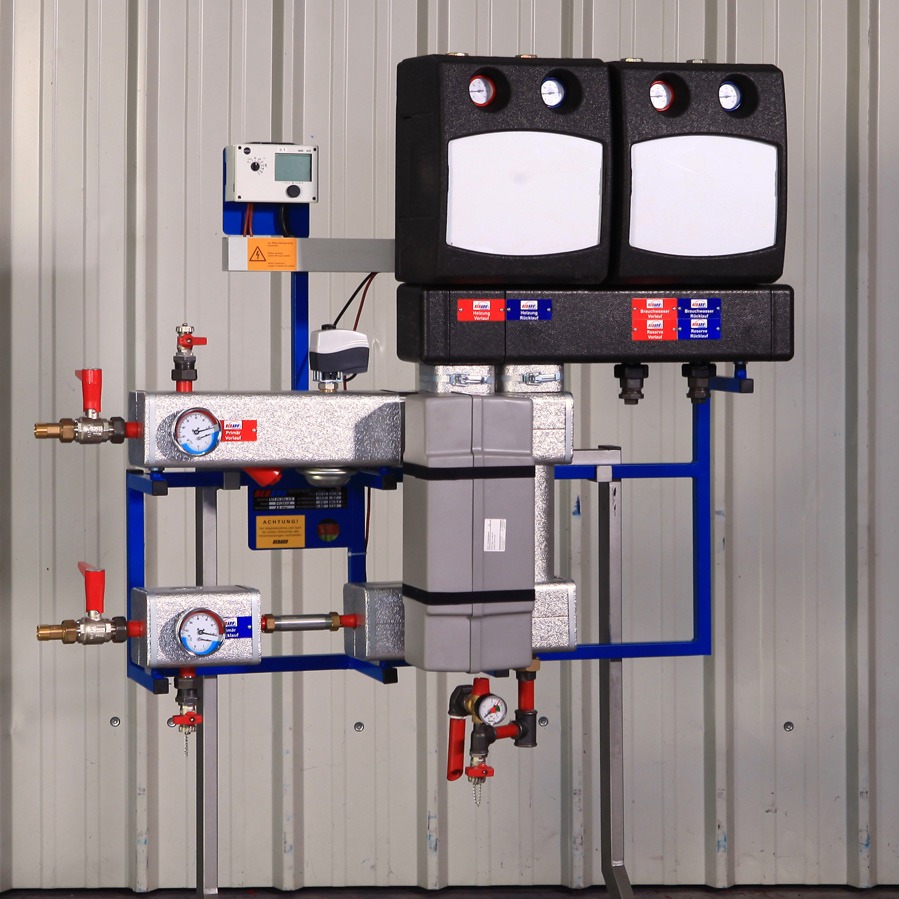

The flexible local and district heating station


The flexible and comprehensive solution for single-family homes and apartment buildings with various connection possibilities in 2 different output ratings.

Please download the flyer here.


  • Primary connection: left, right, on top or on the bottom
  • Welded piping connections
  • 10-year guarantee on welds
  • Simple assembly
  • Flexible design
  • Easy to service
  • High quality mounting parts
  • Fast delivery
  • Impressive value for money

Technical data:

Technical data (general):

  • Volume flow regulator with actuator
  • State of the art control technology
  • Up to 5 secondary units
  • With or without emergency control function

Technical data (MATRIX-Modul 1):

  • Primary volume flow 1.5 m³/h
  • Primary connection DN20

Technical data (MATRIX-Modul 2):

  • Primary volume flow 4.4 m³/h
  • Primary connection DN32


Dimensions (MATRIX-Modul 1):

Height: 1.100 mm
Width: 900 mm
Depth: 450 mm

Dimensions (MATRIX-Modul 2):

Height: 1.370 mm
Width: 1.100 mm
Depth: 550 mm
