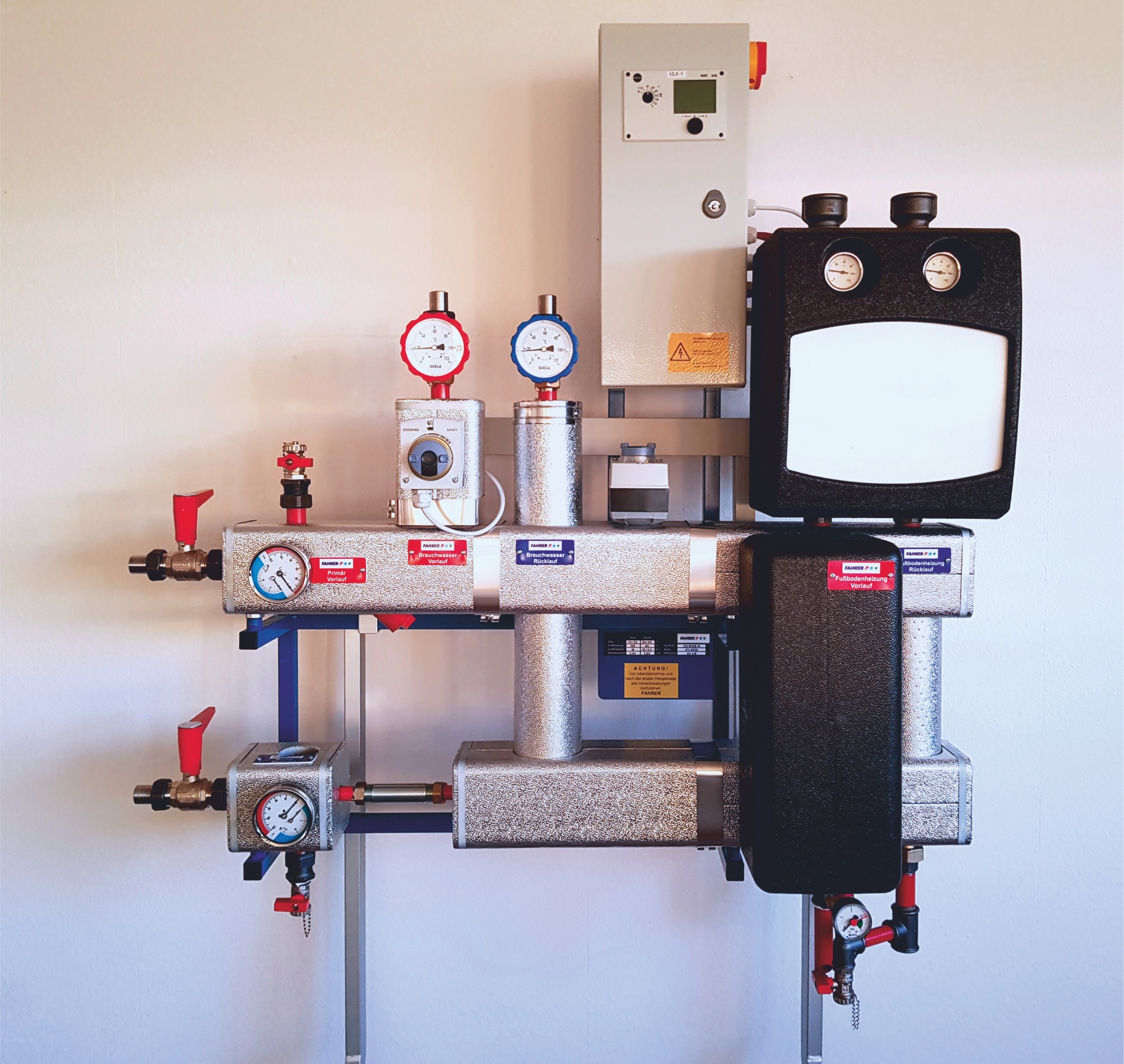

PRIMAX-MODUL
The special local heating station
Clever is...
A special comprehensive solution for singlefamily homes and apartment buildings with various connection possibilities in 2 different output ratings. Especially suitable for low temperature because of primary water heating.
Benefits:
- Primary connection:
left, right, on top or at the bottom - Welded piping connections
- 10-year guarantee on welds
- Simple assembly
- Flexible design
- Easy to service
- High-quality mounting parts
- Fast delivery
- Impressive value for money
Technical data:
- Volume flow regulator with actuator
- State of the art control technology
- Up to 5 secondary units
- With or without emergency control function
- Drinking water heating (as primary function)
Technical data (PRIMAX-Module 1)
- Primary volume flow 1.5 m³/h
- Primary connection DN20
Technical data (PRIMAX-Module 2)
- Primary volume flow 4.4 m³/h
- Primary connection DN32
Dimensions:
PRIMAX-Module 1
| Height: | 1100 mm |
| Width: | 1200 mm |
| Depth: | 450 mm |
PRIMAX-Module 2
| Height: | 1350 mm |
| Width: | 1450 mm |
| Depth: | 550 mm |
